2.1. The experimentsTOP

BDKW (2015) presents the results of three experiments designed to explore whether the well-established influence [in BDKW’s view—mh&k] of speech production on speech perception in adults is a result of experience or not [BDKW, 2015, p. 13531 abstract paraphrased]. [6] To determine the answer to this, BDKW examine the relationship between speech production and speech perception in early acquirers.

The BDKW study first replicated earlier work on infant perception of non-native contrasts and then introduced an additional production-related variable to explore the primary question of a relation between production and perception.

The subjects in these experiments were 6-month-old English-environment infants. The infants were tested on the non-native contrast [7] between dental [d̪] and retroflex [ɖ] voiced stops. [8]

Experiment 1 was intended to replicate earlier experiments on infants’ ability to perceive non-native contrasts, specifically here the contrast between voiced dental and retroflex stops. The auditory stimuli were tokens of [ɖ] and [d̪] culled from a single native speaker of Hindi. The experiment was set up in four trials for a total of 8 instances of 10-token sequences. In each trial, infants were presented with one each of the following – a 10 token sequence that was a repetition of the same token 10 times (Non-Alternating (NAlt) sequence) lasting 20 seconds and a 10 token sequence which randomly distributed 5 tokens of the dental segment, [d̪], with 5 tokens of the retroflex segment, [ɖ] (Alternating (Alt) sequence) also lasting 20 seconds. [9] There were four such trials per experiment (listed as Pair 1, Pair 2, Pair 3 and Pair 4 in the figures repeated from BDKW). As with comparable experiments, infant looking time was taken to be the measure of whether or not infants discriminated between differing tokens. Based on general trends in infant behavior, diverse stimuli (Alt condition) will attract infants’ attention for a longer period than repeated identical stimuli (NAlt condition). Figure 1 of BDKW, repeated here, supports the conclusion that the infants note a difference between dental and retroflex voiced stops.

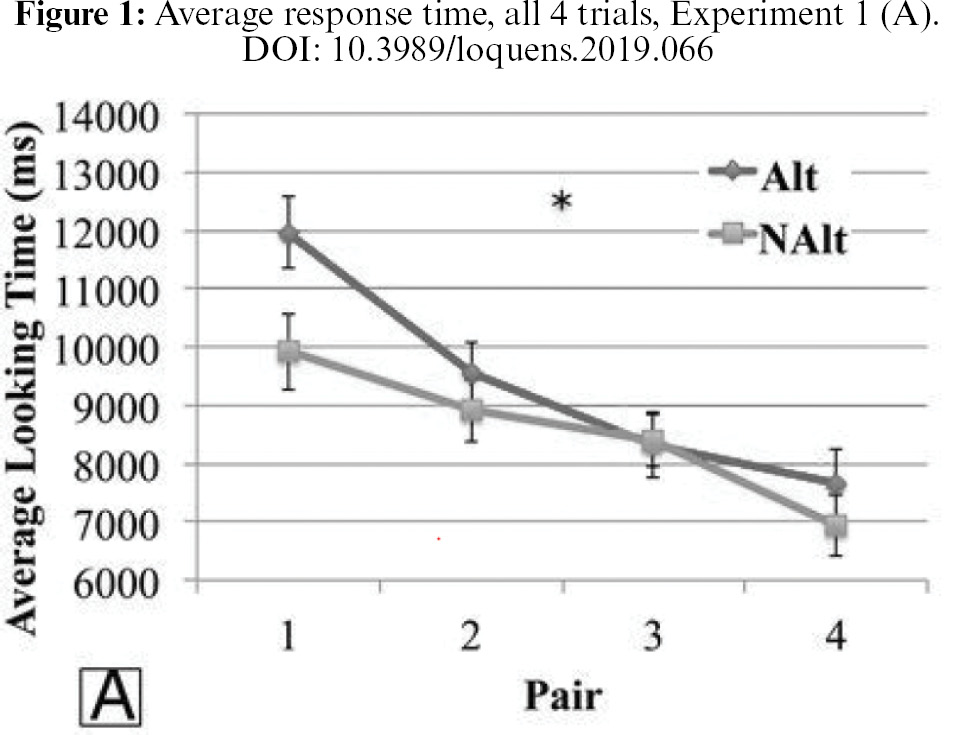

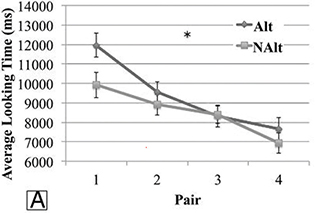

Figure 1:   Average response time, all 4 trials, Experiment 1 (A).

Experiments 2 and 3 were identical to Experiment 1 in every way except one. In each of these two experiments, the infant had a teether (held by the caregiver) in his/her mouth while hearing the stimuli.

Experiment 2 used a broad, flat teether which lay on top of the tongue tip and blade, impeding the movement of those parts of the tongue (labelled by BDKW as the ‘flat’ teether). Experiment 2 was the critical experiment used to explore any effect of production on perception by preventing the articulatory movements required to make the sounds in the auditory stimuli. Experiment 3 used a curved teether that followed the upper and lower gum line, which did not impede movement of the tongue tip or blade (labelled by BDKW as the ‘gummy’ teether). Experiment 3 was intended to be a control for any distracting effects of the simple presence vs. absence of a teether of any type.

Across the four trials there was a steady decline in average looking times, seemingly due to a ‘familiarization to task’ effect. As is the case in all such experimental designs, any significant difference in looking time between the two types of token pairings (in any trial) is taken to indicate that the child must be perceiving the phonetic difference present in the alternating tokens (otherwise, they would be perceived by the child as being identical to non-alternating tokens). The results of these three experiments are presented in BDKW Figure 4, repeated below as Figures 1–3.

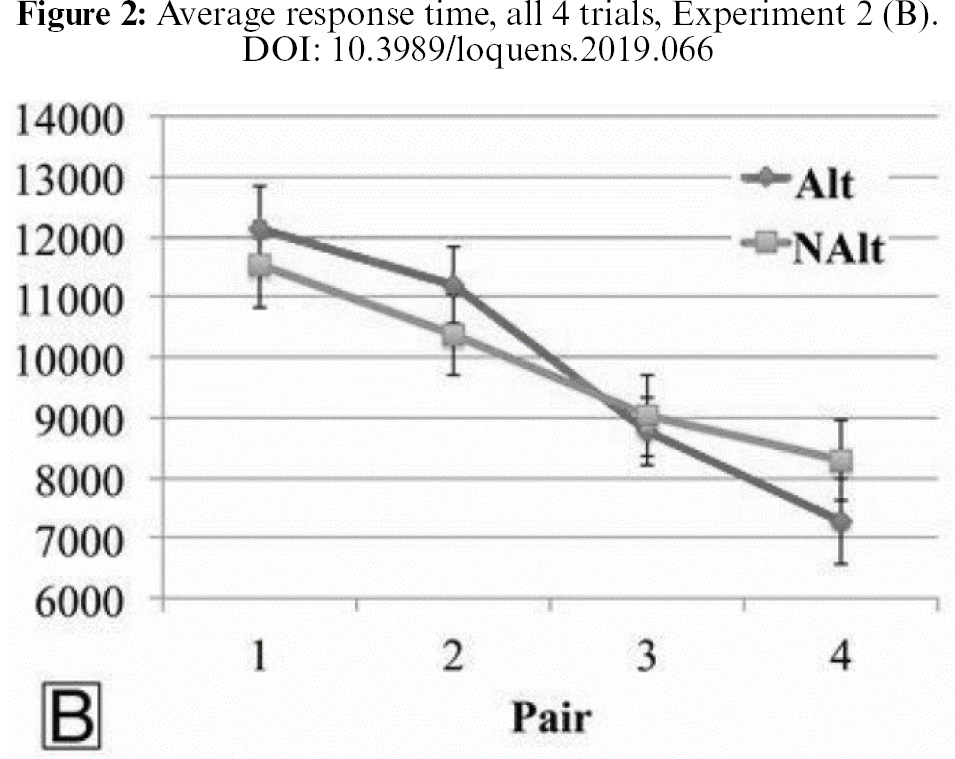

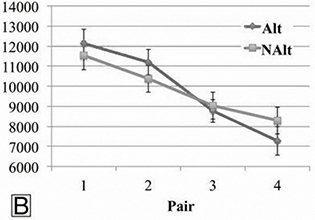

Figure 2:   Average response time, all 4 trials, Experiment 2 (B).

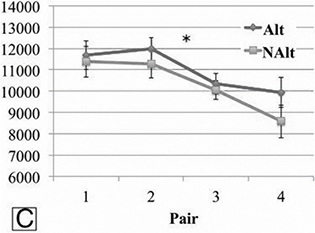

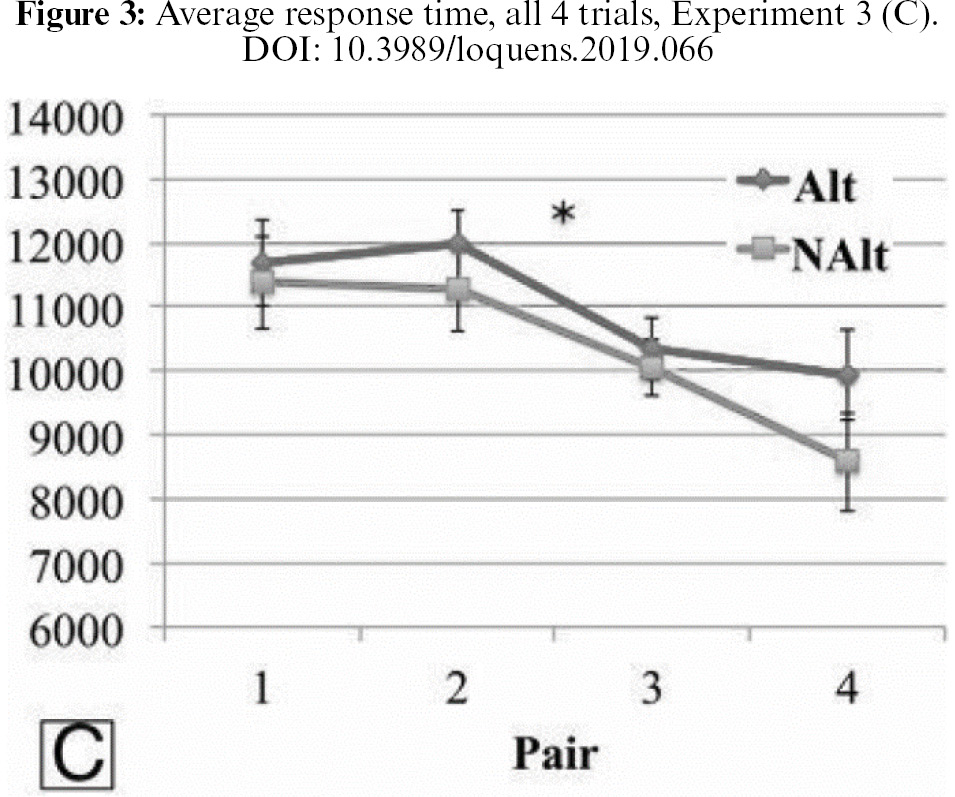

Figure 3:   Average response time, all 4 trials, Experiment 3 (C).

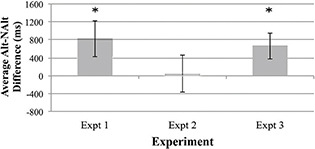

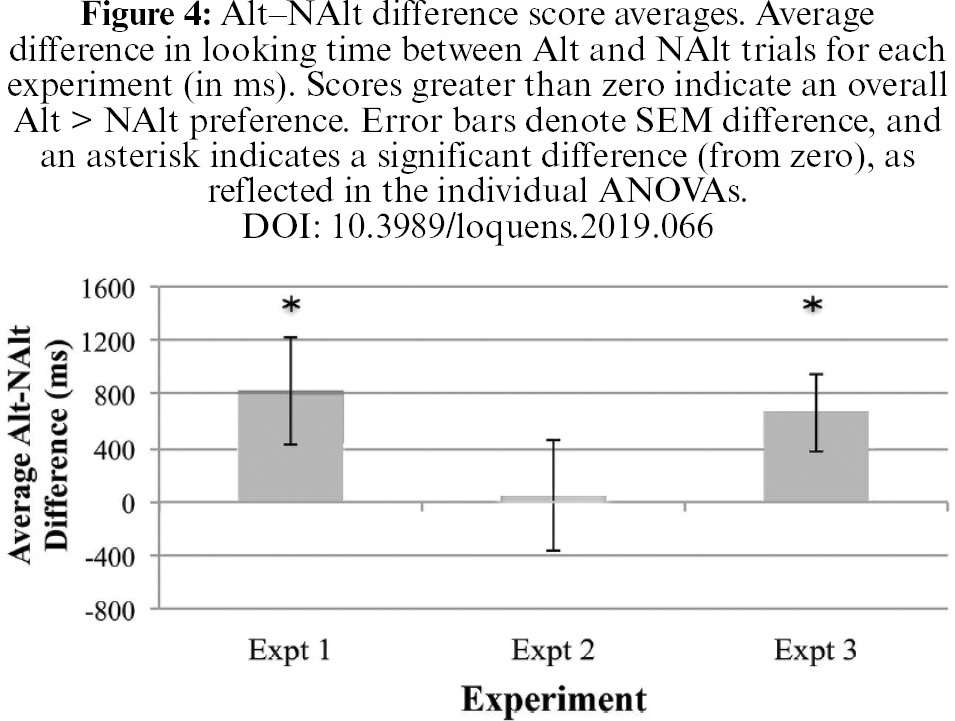

Figura 4:   Alt–NAlt difference score averages. Average difference in looking time between Alt and NAlt trials for each experiment (in ms). Scores greater than zero indicate an overall Alt > NAlt preference. Error bars denote SEM difference, and an asterisk indicates a significant difference (from zero), as reflected in the individual ANOVAs.

BDKW summarize their results for Experiment 2 – with the impeding ‘flat’ teether – as showing that infants “… failed to show evidence of discriminating a phonetic contrast…”; their reported findings for Experiment 3 – with the non-impeding, gummy teether – were that infants ‘‘… successfully discriminated the Hindi /d̪/–/ɖ/ contrast, as did infants in Experiment 1’’ (pp. 13533–4).

The overall conclusion of BDKW was that ‘‘[t]hese findings implicate oral-motor movements as more significant to speech perception development and language acquisition than current theories would assume and point to the need for more research on the impact that restricted oral-motor movements may have on the development of speech and language, both in clinical populations and in typically developing infants’’ (2015, p. 13531).

As described above, these experiments are designed to explore a potential relationship between production and perception where the former influences the latter. If such an influence exists, then we expect to see that in the form of certain experimental results. We describe the expected results below first, for purposes of comparison with the actual results.

2.2. Expected resultsTOP

As we noted above, longer looking time differences between the Alt and NAlt Pairs indicate discrimination (one should generally speaking not act in a different manner when exposed to the same stimulus). If BDKW are correct, we then predict that the absolute values of the looking time differences should pattern like this (direction of differentiation is not relevant to whether discrimination is taking place, obviously):

No Teether ≅ Gummy Teether ≠ Flat Teether

Expt. 1 ≅ Expt. 2 ≠ Expt. 3

That is, we would expect average looking time differences for trials having alternating and non-alternating pairs (as all 4 trials did) with no teether (Experiment 1) and those with a ‘gummy’ teether (Experiment 3) to be essentially the same (since in these two conditions, according to BDKW, the child is perceiving the [d̪]–[ɖ] distinction) and to differ from the differences observed for those trials in Exp. 2 with a ‘flat’ (impeding) teether, as in Experiment 2 (since, according to BDKW, under these conditions the distinction is not being perceived, and the child is simply being presented with what is for him the ‘same’ data in the alternating as in the non-alternating pairs). BDKW predict, in particular, that the looking time differences between Alt and NAlt pairs will be greater in Experiments 1 and 3 than in Experiment 2. We turn now to the actual results.

2.3. Actual resultsTOP

BDKW present the results for the average looking time, averaged for all subjects across all trials, in each of the three experimental conditions. In calculating differences in looking time between the alternating and non-alternating conditions BDKW took the Alt condition as a baseline, calculating the difference between the two conditions by subtracting the NAlt looking time from the Alt looking time. [10] This is summarized in their Figure 5, repeated below (along with the caption of BDKW) as Figure 4.

This figure would seem to indicate quite unambiguously that there was discrimination between the [d̪] and [ɖ] segments in Experiment 1 and Experiment 3, but not in Experiment 2, as the authors concluded.

Below we present our attempt to render the results numerically, based on the graphs in BDKW repeated in Figure 1 earlier, [11] as well as the patterning of the resultant values (grouping the two closest values with = or ≅, and the most distant value with >, or, if the difference is very large, with >>). Since discrimination is a function of the magnitude of the contrasting behavior, not on its directionality, we have used the absolute values of the looking time differences in establishing the ‘pattern’ column. [12]

BDKW, while appropriately considering the possibility of a ‘presence of teether’ effect (this was the purpose of running Experiment 3), concluded that teething toys ‘‘… do not generally disrupt performance.’’ However, upon the first exposure to alternating and non-alternating stimuli (i.e., in Trial 1 for each experiment), the no-teether looking times of Experiment 1 differ by approx. 2050 ms, while the with-teether times show only approx. 550 ms (Experiment 2) and approx. 350 ms (Experiment 3) differences. [13] This large difference between no-teether and teether trials strongly suggests that the teethers were significantly ‘disrupting performance’, perhaps not surprisingly distracting the infants from attending to the phonetic contrasts. In Trial 2, infants appear to have accustomed themselves to the teether and now treat the phonetic contrast as more interesting (800 ms difference in both Experiments 2 and 3), while infants who have already been attending to the data seem to be habituated to the contrasting tokens (500 ms difference, down from 2050 ms in Experiment 1).

In every trial, the two with-teether experimental results (Experiments 2 and 3) pattern more closely together than either of them does with the ‘no teether’ experimental result. Only in the average of all pairs do we suddenly find Experiment 1 and Experiment 3 patterning together to the exclusion of Experiment 2. It is this averaging that the authors build their analysis around. But why does the average result diverge from that of every single pair? It turns out that the average diverges because, for reasons which are unclear but which can have nothing to do with the ability to discriminate, in Experiment 2 the differential preference shifts in Pair 3 and Pair 4 to a dispreference (i.e., shorter looking time) for the Alt condition. Of course, the dispreference, like the preference, is only possible if one is distinguishing the two conditions. The negative values in the dispreference cases, when averaged with the positive values in the preference cases by BDKW, yield an average value in which the regular differentiation on Trials 1, 2, 3, and 4 in Experiment 2 disappears! In fact, using the absolute value of the differences for Exp 2, we get an average magnitude of difference of 637.5ms, directly comparable to the Exp 3 result of 656.25ms.

Given that Experiment 3’s average difference of approximately 656.25ms does not differ in a statistically significant way from Experiment 1’s average of 825ms (this is central to BDKW’s claim that the ‘gummy’ teether does not impede ‘perception’ of the relevant contrast), it seems pretty clear that the Experiment 2 average – taken now from the absolute value of the looking time difference – of 637.5ms will not do so, either. It certainly cannot differ in a statistically significant way from the ‘gummy’ teether result of 656.25ms. Impressionistically, it looks like there is an initial ‘distraction’ effect of having any kind of teether being held in one’s mouth at all, which fades as one accustoms him or herself to its presence. The reason for the inversion in looking times for Trial 4 in Experiment 2 is not clear to us, but of course the entire experimental paradigm (difference in behavior entails perceptual distinction) entails that this result cannot be due to any failure to discriminate the alternating tokens. It should be noted that both familiarity and novelty effects have been found in the same experiment. As noted in McMurray and Aslin (2005, B20) “Although there are a number of hypotheses as to what factors affect the direction of preferences (i.e. novelty or familiarity), no consensus has emerged, and few studies make a priori predictions...”

3.1. Articulatory ConsiderationsTOP

In the first case, we ask how the BDKW hypothesis could be correct – i.e., what the nature of speech perception would need to be for BDKW to get the results they believe they got in these experiments. Since impeding the actual articulation of the two stop segments being presented in the alternating pair condition would seem to be the relevant factor leading to the infants failure to discriminate, it seems we must conclude (as BDKW seem to do) that it is necessary to articulate a segment with a greater degree of accuracy than the ‘flat’ teether allows with respect to [d̪] and [ɖ] in order to perceive the two phonetic entities as distinct. The ‘gummy’ teether does not impede articulation in the relevant ways, and thus (the claim is) perceptual distinctness is maintained (as in the ‘no teether’ case). The teether, being in the mouth rather than the brain, can presumably only impede actual articulation, rather than, e.g., the motor cortex’s representation of an articulatory target. Such a target must come into being before the articulation it gives rise to. Therefore, if the infant is to attempt the actual articulation of something like [d̪] and [ɖ] (and she must, or how could impeding that specific articulation lead to non-discrimination?), she must first build the relevant articulatory representation within the motor cortex. When no teether, or no ‘impeding’ teether, is present in the infant’s mouth, the infant can implement in some way this representation. With the teether present, such an attempt to implement fails because of the impeding teether.

Given the above, it seems necessary to assume that infants can construct representations in their mind which can provide the basis for articulatory action. One possibility is that the same set of phonological features which capture the linguistically-relevant auditory properties of human speech are used to generate instructions to the motor cortex as well (a matter to which we will return below). However, as far as we know, there is no evidence that infants at 6 months have sufficient motor skill development to willfully and intentionally produce the selection of sounds which they have been shown to discriminate, including, for example, the voiced retroflex token of this study. [14] Indeed, the evidence regarding the speech production capacity of young infants indicates pretty clearly that their production systems are, from the perspective of adult production, seriously impaired. ‘Seriously impaired’ in this context means simply that, even when acting on the basis of relatively accurate articulatory representations (e.g., in the motor cortex), the infant cannot control and coordinate their systems well enough to produce adult-like, accurate-to-target articulations. If accurate perception of a [ɖ] requires that the child willfully and with some reasonable degree of accuracy implement the articulatory instructions for a [ɖ], we would expect the speech perception of a 6-month-old infant with no additional impediment beyond his own naturally impaired system to be exceedingly inaccurate. And yet perceptual studies, some of it by authors involved in BDKW’s paper, have repeatedly shown that this is not the case. [15]

Somewhat confusingly, BDKW state in their conclusions that “Sensorimotor information from the articulators selectively affects speech perception in 6-mo-old infants even without productive or perceptual experience with the speech sounds. These findings suggest that a link between the articulatory-motor and speech perception systems may be more direct than previously thought and is available even before infants accrue experience producing speech sounds themselves.” (2015, p.13535). If the infants have not and cannot (due to immature motor skills) produce the required articulatory configuration, it is not clear what the ‘sensorimotor information’ referenced by BDKW could possibly consist of.

3.2. CasualityTOP

A more serious problem with their hypothesis arises when attempting to determine what could cause the infant to construct the articulatory plan for a [d̪] or a [ɖ] when exposed to the alternating pair data. Clearly, the infant could only construct distinct representations for the two stops (which, according to the theory, they must do if they are to be able to perceive the distinction at all) if their brains have the information that the infant is being exposed to two distinct segments – and, to some reasonable degree, to the nature of the distinction between those segments. That is, the brain must accurately process and represent the distinction between [d̪] and [ɖ] in order to eventually find that it cannot physically implement the difference articulatorily. This capacity to process and represent the acoustics of speech seems definitional of ‘speech perception’, but BDKW clearly must mean something else by their use of this phrase, since their analysis could not logically stand otherwise.

While not proposed explicitly by BDKW, the only possible theory that might account for an actual causal effect of production-related events on perception is the ‘forward prediction’ model. However, Hickok (2012) offers a thorough discussion of studies of ‘forward prediction’ (used most typically to describe the predictions of the motor system about expected sensory feedback from particular actions) in perception based on transcranial magnetic stimulation (TMS) studies. He notes both conceptual and empirical problems with forward prediction and the studies that are used to support it. These include: 1) divergent goals of forward prediction in motor as opposed to perceptual contexts – error vs. enhanced recognition, respectively; and 2) empirical evidence that shows that “...motor prediction in general tends to lead to a decrease [emphasis ours] in perceptual response...” (Hickok, 2012, p. 399). Most critically, however, Hickok notes that “… damage to the motor speech system does not cause corresponding deficits in speech perception as one would expect if motor prediction were critically important’’ (Hickok, 2012, p. 399).

Finally, BDKW’s study ignores the long-known acoustic-articulatory inversion problem – the many-to-one relationship between articulation and acoustic signal. Lieberman & Blumstein (1988) pointed out early on that “… a human listener cannot tell whether a speaker produced a vowel like [e] by maneuvering his tongue… or by maneuvering his lips and larynx… unless the ‘listener’ is equipped with X-ray vision or insists on holding conversations in front of X-ray machines’’ (169). Dealing with the many-to-one mapping remains a challenge for speech recognition and other computer-based speech applications as noted in Ji (2014).

4.1. Lack of parallelism in adult studiesTOP

Studies with adult subjects differ in significant ways from the BDKW study. [16] Since BDKW state that “[t]he influence of speech production on speech perception is well established in adults” (BDKW, 2015, p. 13531) and are inquiring into whether the same effects are found in infants (as opposed to being the result of many years of experience), it is worth exploring these differences. First, a number of studies cited by BDKW differ crucially in the nature of the stimuli the experimental subjects were exposed to, and thus to the subjects’ task in the experimental setting. One of the studies that was closest in its focus on articulatory gestures and perception was Ito et al. (2009). In that study, the articulatory (in this case facial muscle) gesture was mechanically stretched into positions that matched or did not match (one of) the articulatory gestures of the relevant vowels found in a continuum between the words ‘head’ and ‘had’ (minimally different in vowel height) – a stretching action that presumably preceded or was simultaneous with the acoustic stimulus although the timing was not noted specifically. [17] Ito et al. (2009) found an effect on subject performance (word identification) where the facial stretch influenced the subject’s choice in cases of ambiguous tokens only, i.e., on the subset of stimuli which occupied acoustic positions between tokens of clear natural vowel qualities. Clear tokens were unaffected by facial stretch.

The Ito et al. (2009) stimuli (and, as a consequence, results) were critically different from the BDKW type. The tokens in BDKW were, we assume, intended to be unambiguous tokens of dental [d̪] and retroflex [ɖ] and were clearly distinguished by subjects in the no-teether trials. (The Ito et al.\ (2009) subjects were given ambiguous tokens in both types of trials – without facial stretch and with facial stretch – with poor identification of the ambiguous tokens in all types of trials.) The correct comparanda between the adult (Ito et al.) and infant (BDKW) experiments therefore would actually be the adult performance on clear tokens with (all of) the infant performance (all of whose tokens were clear). Adult performance in the clear cases was unimpeded by facial stretch according to the graphs presented in Ito et al. (2009) as well as their discussion of results. We have, as a consequence, conflicting rather than corroborating results in the Ito et al. (2009) study and the BDKW study (as reported by BDKW).

Ito et al. (2009) and similar studies reveal the hardly suprising fact that information from other systems (in this case motor feedback) might sway subjects toward a particular choice when faced with stimuli that are difficult to identify because the acoustic input is ambiguous. Any available additional source of information can and may be used by a subject to help disambiguate unclear acoustic input, including additional information from the lexicon (as ‘Ganong Effect’ studies demonstrate, Ganong 1980). The principle – using all available input to disambiguate confusing signals – is the same in visual-based studies such as the ‘McGurk Effect’ type (McGurk & McDonald 1976 and many subsequent studies). Here, however, there is a deliberate attempt to sway the subject by presenting conflicting acoustic and visual input and then forcing the subject to decide which, if any, of the input is an accurate representation of the incoming data. (A frequent result here is a ‘combination’ effect where subjects hedge their bets and use information from both inputs with a final decision locating the sound somewhere in between the two.) As in the Ito et al. (2009) case, the McGurk-type studies are not parallel to the BDKW study, though they differ in which aspect is not parallel. Unlike the McGurk-type studies, BDKW does not present conflicting external input to the subject. Instead, BDKW in some ways combine the physiological ‘impediment’ of the Ito et al. (2009) type with the clear acoustic input of the McGurk type, with the result that BDKW replicate neither type of study. What is common to all the studies just cited, however, is the multiplicity of cognitive modules being manipulated and tested. We return to the critical issue of identifying the multiple systems engaged in performance tasks in a later section.

4.2. Links between audition and articulationTOP

The question of the nature of the ‘link’ between the articulatory-motor and speech perception systems is an important one. Studies such as Pulvermüller et al. (2006), cited by BDKW, demonstrate that perception of speech sounds causes activation in areas of the motor cortex, specifically, that there is a unidirectional link between perception and the relevant motor areas for speech production. Such a link seems conceptually necessary in any case to explain the acquirer’s ability to reproduce a particular acoustic output via articulatory gestures with no overt instruction. [18] However, the evidence for the ‘bidirectional relationship’ asserted in BDKW does not seem to be equally well-supported, at least in terms of the linguistic module. The studies cited in support of a production-influenced perception suffer variously from problems discussed earlier, some of the McGurk type (Sams et al., 2005), some of the Ito et al.\ type (Möttönen & Watkins, 2009, which drew all its data from ambiguous/unclear tokens), and some of the TMS-based type discussed specifically in Hickok 2012 (D’Ausilio et al. 2009). As pointed out in a quote from Hickok (2012) earlier, if production were critical to perception, it would predict that damage to the motor speech system would result in perceptual failure – no such effect has been found.

What could be a possible ‘link’ between the articulatory-motor and speech perception systems in an infant which pre-exists articulatory experience, as alluded to in the quote above from BDKW’s conclusions (p. 13535)? The mental structures and representational capacities of this type – which exist and have their properties prior to experience – are precisely the types of objects posited as the components of genetic UG by linguistics for some fifty years. In the phonological domain, this is generally taken to include a feature system used in the construction of lexical representations, and computed over by the phonological computation system. There was some debate in the early period of modern linguistics as to whether it was preferable to have these features represent articulatory properties of the segments found in human linguistic systems or the acoustic properties of those segments. One might have thought that the issue would have been resolved long ago – the facts of phonological computation could have easily favored one type of feature (e.g., the acoustic) as providing much cleaner analyses than those predicted by the use of articulatory features. Instead, the matter has largely been left to one side: Slavic linguists and those strongly influenced by the Jakobsonian tradition generally use acoustic features, while mainstream generative phonology and other intellectual descendants of SPE use predominately articulatory features.

In Hale & Reiss (2008) we find a proposal for why this might be the case: if phonological computation proceeds without regard for the alleged substance (articulatory or acoustic) of phonological features, it makes sense that it is difficult for scholars examining phonological processes to find unambiguous evidence in favor of one type or another. Hale & Reiss argue that the question is a non-issue: one and the same set of features is used by both interface systems – both the articulatory and the perceptual interfaces. It is the system-specific (motor vs. auditory) transduction of this set of features that allows multiple system use. Both these interface systems being post-linguistic, linguistic computation has no access to the non-linguistic side of such transduction. [19]

The features of the phonological system – innate, and thus pre-existing any specific linguistic experience – provide just the desired ‘link’ between these two domains [20] of a six month old infant – as Werker and Tees (1984) firmly established – can construct a mental representation of the speech sound [ɖ], presumably leveraging this pre-existing, innate feature system and the (likewise innate) transduction system(s) for perception. This same feature representation can be transduced to an articulatory plan which, however, with or without an impeding teether the 6-month old’s performance systems will be incapable of accurately implementing.

Under such a conception of matters, the claims made by BDKW on the basis of their experimental data cannot be true. We have detailed several reasons for this: (1) the infant must perceive the distinction between [d̪] and [ɖ] in order to attempt to articulate it and subsequently be impeded in so doing by a teether; (2) the unified featural representation made use of in both perception and production is involved in the transduction of either modality using innate mechanisms; and (3) as we have just argued, the 6 month old infant’s performance systems fail to accurately implement articulatory targets regardless of the presence or absence of artificially added impediments – yet the perception of phonetic contrasts at this stage is quite robust.

BDKW use a scale which somehow counts looking for 300ms longer at the alternating condition as indicative of discrimination, but looking for 300ms shorter at that same alternating condition as failure to discriminate. Fortunately, a simple reworking of the statistics heeding the magnitude (i.e., absolute value) of differentiating looking times for the alternating vs. non-alternating conditions yields sensible results. What appears to actually be going on in BDKW’s experiments is that the presence of the teethers, being held in place in the mouth of the infant by a caregiver for the duration of the testing, triggers a modest distracting effect with respect to attention to the segmental contrast present in the alternating trials, which fades on subsequent trials with a teether. The decline arising from task familiarization shows a similar trajectory both without any teether and with both kinds of teethers after that point. The discrimination-evincing behavior in the ‘impeding’ teether experiment shows an interesting – and at present unexplained – shift in looking preference for the NAlt condition over the Alt condition. If this is more than a statistical fluke, further work should be pursued to try to clarify just what it represents: but what is clear is that it cannot be explained by BDKW’s claim that there is a ‘failure to discriminate’ the alternating stimuli pairs in this trial. As Houston-Price & Nakai (2004, p. 344) note regarding the use of this type of ‘looking preference’ experimental design: ‘‘[t]he direction of a looking preference is largely irrelevant when infants’ discrimination ability or recognition memory is of primary interest; any deviation from random behavior indicates that a difference between the stimuli has been detected.’’

It is worth noting, as Houston-Price & Nakai go on to say (2004, p. 355), that “some infants will progress through the sequence of preferences more rapidly than others; if data are averaged across a group of infants, looking preferences may appear to be random at certain time points, despite individual infants showing clear familiarity or novelty preferences…” Thus, while we have emphasized the dangers of averaging across trials, especially with respect to how one establishes the values being averaged, we also note that averaging over sets of subjects gives rise not only to the methodological concerns raised above, but to the problem that the object of linguistic research is the knowledge state of an individual. Not only is there no guarantee that an average represents any knowledge state, but, as in BDKW, conclusions about individuals (‘language acquisition’, e.g., is not a group enterprise) appear to be being drawn without the direct consideration of the actual behavior of any individual subject. The relevant data is not provided, but the numerical data cited is fully consistent with some subjects (if a significant minority) in fact showing ‘discrimination’ even under BDKW’s misanalyzed statistics in the flat teether experiment. But how could this be possible, given the explanation they propose?
