1. INTRODUCTIONTOP

What is the set of possible pairwise phonological rule interactions, and how are they related? By construing rule interaction relationships in terms of formal conversion operations, we find that the total number of pairwise interactions is eight. Conversion from any one of these interactions to another can be accomplished by applying at most two of the three conversion operations, revealing a great deal about the relationships among the different types of interactions predicted by conjunctive rule ordering (Chomsky & Halle, 1968).

To start, we already know what it takes to formally convert one of the four ‘classical’ rule interactions —feeding, bleeding, counterfeeding, and counterbleeding— into one another. Most familiarly, feeding and bleeding can be converted into their counter-counterparts, and vice-versa, via rule re-ordering, relabeled here as a conversion operation we call swapping (Chafe, 1968; Kiparsky, 1968; Koutsoudas et al., 1974). If P precedes and feeds, Q then swapping the order of P and Q such that Q precedes P means that P will counterfeed Q, and vice-versa. Likewise, if P precedes and bleeds R , then swapping the order of P and R such that R precedes P means that P will counterbleed R , and vice-versa.

More recently, Hein et al. (2014) have shown how feeding and bleeding, or counterfeeding and counterbleeding, can be converted into one another via an operation that they call flipping. Given a rule P that precedes and feeds (or follows and counterfeeds) another rule Q, flipping the target and the change of P means that P will bleed (or counterbleed) Q, and vice-versa[1]. Combining these two operations completes the circle: feeding (F) and bleeding (B) become counterbleeding (CB) and counterfeeding (CF), respectively and vice-versa, via both flipping (flip) and swapping (swap), applied to each interaction in either order.

We discuss these two rule interaction conversion operations in more detail below, and then introduce a new conversion operation that we dub cropping. The set of possible pairwise rule interactions is thereby expanded to include distinctions beyond the classical, and conversion relations among all interactions are identified and clarified.

Given the formal nature of the topic at hand, the discussion will rather necessarily abstract away from the empirical basis for the various rule interactions. We endeavor to temper this abstraction throughout with relevant examples; these are simplified for expository purposes, and possibly overly so in some cases. In order to make clear that we are (over)simplifying, we write that each example is ‘based on’ the rele-vant language example.

Our deep dive into the predicted consequences of conjunctive rule ordering is inspired by Prince (2007), who notes (p. 33) that “a theory is the totality of its consequences … Once formulated, a theory has broken definitively with intuition and belief. We are stuck with its consequences whether we like them or not, anticipate them or not, and we must develop techniques to find them.” The techniques that we use in this article to identify and relate rule interactions elucidate key predictions of conjunctive rule ordering, well beyond and more precisely than what has been achieved since discussions of this theory began.

2. INTERACTIONS AND RELATIONSTOP

2.1. Feeding and provisionTOP

Consider the following example of feeding, based on a Finnish example (Kiparsky, 1973, 1993). The raising rule in (1a) changes word-final e to i, and the assibilation rule in (1b) changes ti sequences to si sequences[2]. The feeding interaction is apparent in (1c) only raising is applicable to vete, resulting in veti; assibilation is now newly applicable, yielding vesi.

(1) Raising feeds assibilation

1.	Raising (‘rse’): e → i / __# kiele kieli ‘tongue’
2.	Assibilation (‘asb’): t → s / __i tilati tilasi ‘ordered’
3.	Feeding interaction: vete veti vesi ‘water’

In previous work (Baković & Blumenfeld, 2017, 2018a), we show how a classical feeding interaction like this one is composed of two more basic relations between the two rules. This decomposition is illustrated in Figure 2, with attention limited[3] to a set of minimal substrings standing in for the equivalence classes required to reveal the more basic relations[4].

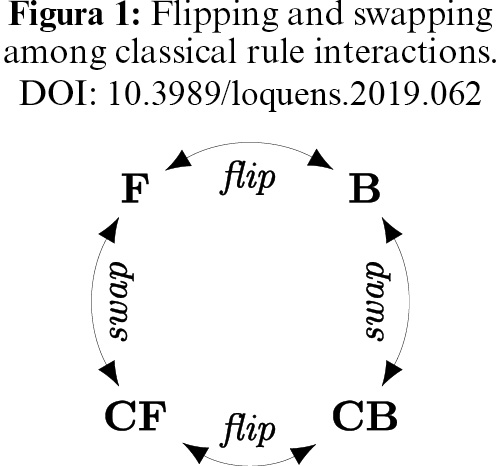

Figura 1:   Flipping and swapping among classical rule interactions.

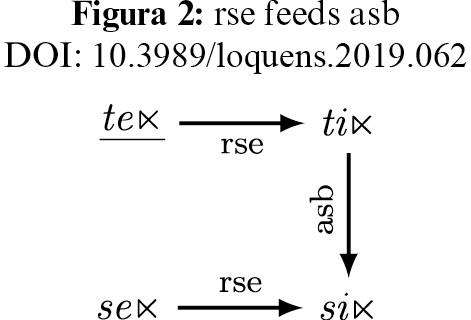

Figura 2:   rse feeds asb

Because these types of figures and the relations they illustrate are unfamiliar, we will take some time to explain Figure 2 in such a way that later figures may be read more easily.

The earlier-ordered rule involved in the interaction —in this case, the feeding raising rule ‘rse’— is displayed horizontally (input te⋉ on the left, output ti⋉ on the right, and a ‘rse’-labeled arrow between them), and the later-ordered rule —the fed assibilation rule ‘asb’— is displayed vertically (input ti⋉ above, output si⋉ below, and an ‘asb’-labeled arrow between them). To more fully represent the extensions of the rules involved in the interaction, we explicitly indicate that si⋉ is also an independently-predicted nonvacuous output of raising by adding the relevant input se⋉ to its left and a ‘rse’-labeled arrow between them. Finally, to highlight the starting point of the path through the figure that intuitively corresponds to the feeding interaction itself, the initial input of raising is underlined: te⋉.

The first, perhaps more obvious relation is that raising provides inputs to assibilation (‘rse i-provides asb’), because for at least one nonvacuous ⟨input, output⟩ pair of raising, ⟨te⋉, ti⋉⟩, the output, ti⋉, is a possible input to assibilation, but the input, te⋉, is not. The second relation is that raising also provides outputs to assibilation (‘rse o-provides asb’), because for at least one nonvacuous ⟨input, output⟩ pair of raising, ⟨se⋉, si⋉⟩, the output, si⋉, is a possible output of assibilation, but the input, se⋉, is not.

This output-provision relation is less obvious, but crucial. It ensures that the application of assibilation to ti⋉ does not change the fact that the resulting form, si⋉, is also a possible direct result of raising, albeit from a different input. If this output-provision relation did not hold, the application of assibilation to the output of raising would result in a form that does not look like raising should have applied to it. In such a scenario, the application of raising would not be surface apparent, a well-known property of counterbleeding interactions (McCarthy, 1999) —and also of self-destructive feeding interactions (Baković, 2007), of which this hypothetical example would be one, as discussed in §5.2 below.

Another way to understand these two relations is in terms of the intersections of the string sets that constitute the two rules’ inputs and outputs (Baković, 2013b). Let’s call the set of input strings to raising rse_i, the set of output strings of raising rse_o, the set of input strings to assibilation asb_i, and the set of output strings of assibilation asb_o. Limiting our attention again to minimal relevant substrings, we have the string set intersections in (2).

(2) String set intersections of rse_x and asb_y

Raising thus nonvacuously produces both outputs that are inputs to assibilation and outputs that are outputs of assibilation; that is, raising both i-provides and o-provides assibilation.

2.2. Bleeding and removalTOP

Consider now the following example of bleeding, based on a Lamba example (Doke, 1938; Kenstowicz & Kisseberth, 1979)[5]. Both lowering and palatalization are applicable to kosika, but once lowering applies, yielding koseka, palatalization is no longer applicable.

(3) Lowering bleeds palatalization

1.	Lowering (‘low’):
2.	Palatalization (‘pal’): s →ò /_i fisika fiʃika ‘it hides’
3.	Interaction: ‘it is strong’ kosika koseka koseka

A classical bleeding interaction like this one is also composed of two more basic relations between the two rules (Baković & Blumenfeld, 2017, 2018a). This is illustrated in Figure 3, again with attention focused on just the minimal substrings relevant to the interaction.

Again, the earlier-ordered rule involved in the interaction — the bleeding lowering rule ‘low’— is displayed horizontally (input osi on the right, output ose on the left, ‘low’-labeled arrow between them), and the later-ordered rule — the bled palatalization rule ‘pal’ — is displayed vertically (input osi above, output oʃi below, ‘pal’-labeled arrow between them). And again, to more fully represent the exten-sions of the rules involved in the interaction, we explicitly indicate that oʃi is a predicted nonvacuous input to lowering by adding the relevant output oʃe to its left and a ‘low’-labeled arrow between them[6]. And finally, the starting point of the path through the figure that intuitively corresponds to the bleeding interaction itself is highlighted by underlining the initial input of lowering: osi.

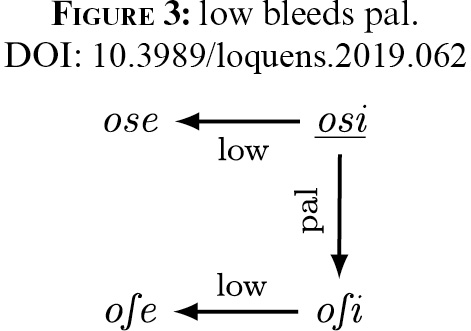

Figura 3:   low bleeds pal.

The first, more obvious relation is that lowering removes inputs from palatalization (‘low i-removes pal’), because for at least one nonvacuous ⟨input, output⟩ pair of lowering, ⟨osi, ose⟩, the input, osi, is a possible input to palatalization but the output, ose, is not. The second relation is that lowering also removes outputs from palatalization (‘low o-removes pal’), because for at least one nonvacuous ⟨input, output⟩ pair of lowering, ⟨oʃi, oʃe⟩, the input, oʃi, is a possible output of palatalization but the output, oʃe, is not.

Like the output-provision relation of feeding, the less-than-obvious output-removal relation of bleeding is crucial. Its presence ensures that the application of palatalization to osi does not change the fact that lowering is still applicable to the resulting form, oʃi. If this output-removal relation did not hold, then the output of palatalization would no longer be eligible for lowering, and in that case palatalization would bleed lowering just as lowering bleeds palatalization. This is mutual bleeding, as discussed in §5.1 below.

And again, from the point of view of string set intersection:

(4) String set intersections of rse_x and pal_y

Lowering thus nonvacuously changes both inputs that are inputs to palatalization and inputs that are outputs of palatalization to outputs that are neither inputs nor outputs of palatalization; that is, lowering both i-removes and o-removes palatalization.

2.3. SummaryTOP

The classical feeding and bleeding rule interactions can each be decomposed into two more basic relations between rules, provision and removal of inputs and outputs. Provision and removal are respectively defined more explicitly in (5) and (6).

(5) Provision of inputs and outputs (feeding)

1.	P input-provides Q if ∃ forms a, b s.t. P(a) = b and Q applies to b but not a.
2.	P output-provides Q if ∃ forms a, b s.t. P(a) = b and ∃ a form c s.t. Q(c) = b but ∄ a form d s.t. Q(d) = a.

(6) Removal of inputs and outputs (bleeding)

1.	P input-removes R if ∃ forms a, b s.t. P(a) = b and R applies to a but not b.
2.	P output-removes R if ∃ forms a, b s.t. P(a) = b and ∃ a form c s.t. R(c) = a but ∃ ∕a form d s.t. R(d) = b.

In the case of feeding, the earlier-ordered feeding rule both i-provides and o-provides the later-ordered fed rule; in the case of bleeding, the earlier-ordered bleeding rule both i-removes and o-removes the later-ordered bled rule.

Generalizing somewhat from the relatively specific (albeit simplified) examples discussed above, let us imagine three rules of the following schematic and possibly familiar form.

•	(7) a. P = A→B/C__D
•	b. Q = E→f/BD__
•	c. R= E→f/ AD__

Given a starter input cade, P feeds Q and bleeds R, as shown in Figure 4 and Figure 5.

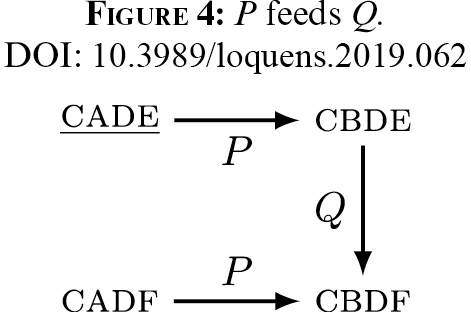

Figura 4:   P feeds Q.

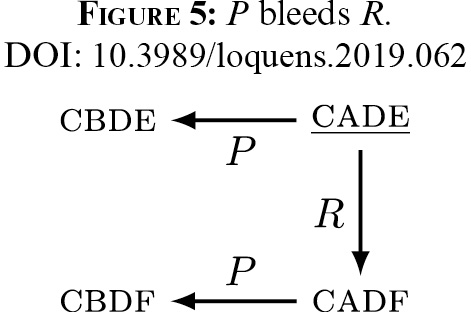

Figura 5:   P bleeds R.

These figures are intended as schematic visual representations of crucial formal properties of each interaction. Some properties depend on rule order: the distinction between feeding and counterfeeding depends on the order of P and Q, and the distinction between bleeding and counterbleeding depends on the order of P and R. Order-dependent properties are illustrated by the dimensional orientation of the arrows in the figures: the earlier-ordered rule is displayed horizontally, while the later-ordered rule is displayed vertically. This dimensional distinction will be manipulated in §3 below to represent the result of the swapping operation.

Other properties are independent of order, and are encoded in the topology of the arrows. The structure → . → . ← corresponds to both feeding and counterfeeding (e.g. CADE → CBDE → CBDF ← CADF), and the structure ← . → . → corresponds to both bleeding and counterbleeding (e.g. CBDE ← CADE → CADF → CBDF). Mnemonically, when the two outermost arrows point inward, we have in-flow (feeding and counterfeeding); when those two arrows point outward, we have out-flow (bleeding and counterbleeding).

3. SWAPPING AS (CLOCKWISE) ROTATIONTOP

Given the convention in our figures of illustrating the application of the earlier-ordered rule horizontally and the application of the later-ordered rule vertically, we can rotate the figures 90 degrees, semi-arbitrarily clockwise, to represent swapping, converting feeding (Figure 4) into counterfeeding (Figure 6) and bleeding (Figure 5) into counterbleeding (Figure 7). As noted in the summary in §2.3 further above, rotating the figures preserves the topology of the arrows and thus the order-independent properties of these rule interactions.

Note that we continue to follow the convention of underlining the starting point of the path through the figure that intuitively corresponds to the type of interaction in each case. Counterfeeding is when P fails to feed Q, meaning that Q maps cbde to cbdf before P gets a chance to create more cbde outputs to also be inputs to Q. This makes the application of Q non-surface-true, a characteristic of counterfeeding (McCarthy, 1999) as well as of other blocking interactions that are not predicted by conjunctive rule ordering (non-derived environment blocking, do-something-except-when blocking, and disjunctive blocking; see Baković, 2011, 2013a). Counterbleeding is when P fails to bleed R, meaning that R maps cade to cadf in time for P to then map cadf to cbdf. This makes the application of R non-surface-apparent, a characteristic of counterbleeding (McCarthy, 1999) and of self-destructive feeding (Baković, 2007), on which see §5.2 below.

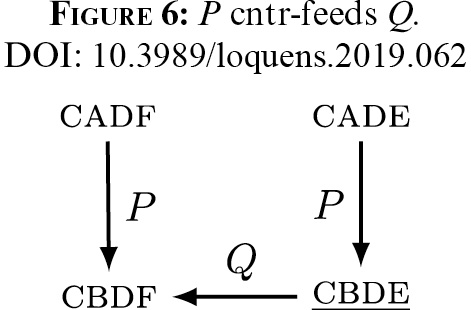

Figura 6:   P cntr-feeds Q.

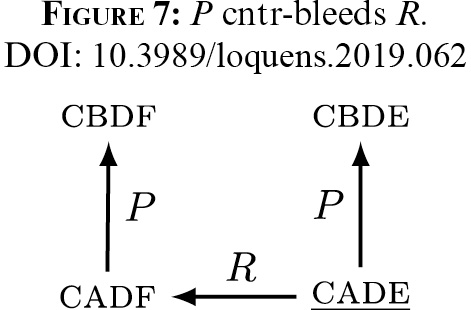

Figura 7:   P cntr-bleeds R.

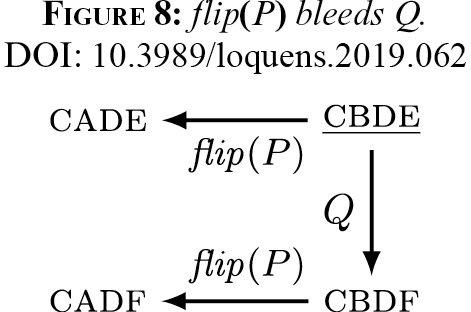

Figura 8:   flip(P) bleeds Q.

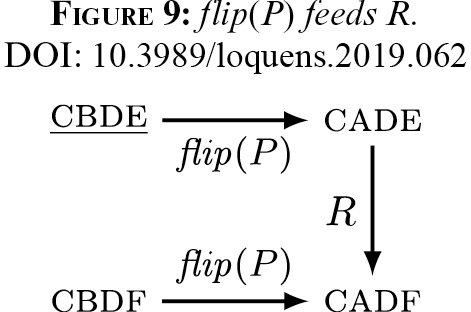

Figura 9:   flip(P) feeds R.

4. FLIPPING AS ARROW REVERSALTOP

Recall that Hein et al.’s (2014) flipping operation involves taking the rule we’ve been referring to as P — the earlier-ordered rule in a feeding or bleeding interaction, and the later-ordered rule in a counterfeeding or counterbleeding interaction — and exchanging P‘s target for P ‘s change and vice-versa. So, given that P is a → b / c__d, changing cad to cbd, then flip(P is b → a / c __d, which now changes cbd to cad. With Q and R still applicable and inapplicable to the same string sets in each case, as shown in (8), feeding becomes bleeding and bleeding becomes feeding, and likewise for their counter-counterparts.

•	(8) a. flip(P)=B→A/C__D cf. (7a)
•	b. Q=E→F/BD__ = (7b)
•	c. R=E→F/AD__ = (7c)

This is illustrated with simple reversal of P’s arrows in the illustrative figures presented thus far, converting Figure 4, Figure 5, Figure 6 and Figure 7 into Figure 8, Figure 9, Figure 10, and Figure 11, pairwise respectively.

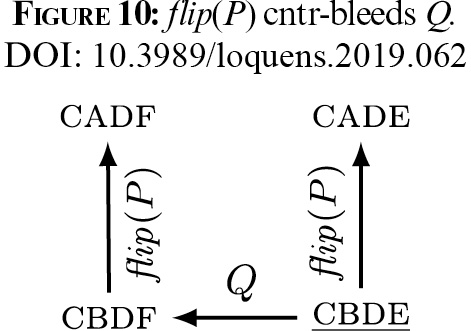

Figura 10:   flip(P) cntr-bleeds Q.

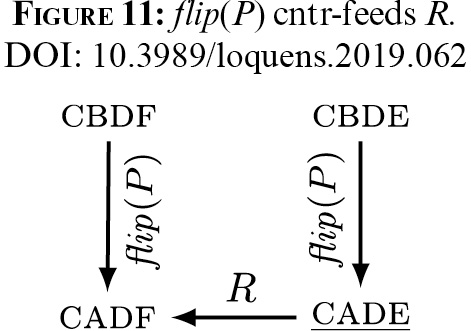

Figura 11:   flip(P) cntr-feeds R.

Note that flipping changes the topology of the arrows. Flipping P amounts to changing the direction of the two outer arrows, which converts → . → . ← into, ← . → . → changing in-flow to out-flow, and vice-versa. On the other hand, even though e.g. Figure 4 (P feeds Q ) and Figure 9 (flip(P)feeds R have different strings in the underlined starting point position, they both have the same arrow topology — in other words, the de novo feeding interaction in Figure 4 and the feeding interaction derived via flipping in Figure 9 are formally identical in terms of input and output provision, or how the rules’ input and output string sets intersect.

Note also that flipping the inner Q -/ R- arrow preserves the essential arrow topology, and thus has no formal effect on the interaction. Consider first feeding and counterfeeding: → . → . ← , when Q-flipped to → . ← . ← is essentially unchanged; in-flow remains in-flow. In the Finnish-based feeding example in (1), assibilation (Q= t → s / __i) can be flipped to become ‘desibilation’ (flip(Q)= s → t /__i); raising (=P) still i-provides and o-provides the i in the context of this flipped rule. Now consider bleeding and counterbleeding:, ← . → . → when R- flipped to, ← . ← . →, is again essentially unchanged; out-flow remains out-flow. In the Lamba-based bleeding example in (3), palatalization (R = s → ʃ /__ i) can be flipped to become depalatalization ( flip(R)=ʃ → s / __ i); lowering (=P) still i-removes and o-removes the i in the context of this flipped rule.

5. CROPPING AS ARROW EXCISION/ADDITIONTOP

Explicit recognition of the provision and removal of outputs is critical for distinguishing the classical from other pairwise rule interaction types (Baković & Blumenfeld, 2017, 2018a), to which we now turn.

5.1. Mutual bleedingTOP

Consider first the case of mutual bleeding in (9), based on a Russian example (Kenstowicz & Kisseberth, 1979). Bleeding is mutual here because if l-drop were to apply first, it would be the rule that bleeds and deletion would be the rule that is bled: metl met *met.

(9) Mutual bleeding of deletion and l-drop

1.	Deletion (‘del’): metla mela ‘she swept’
2.	l-drop (‘l-d’): nesl nes ‘he carried’
3.	Interaction:metl mel mel ‘he swept’

The illustrative figure for this case of mutual bleeding thus looks like Figure 12, with deletion and l-drop mutually removing inputs from each other, and with no output-removal.

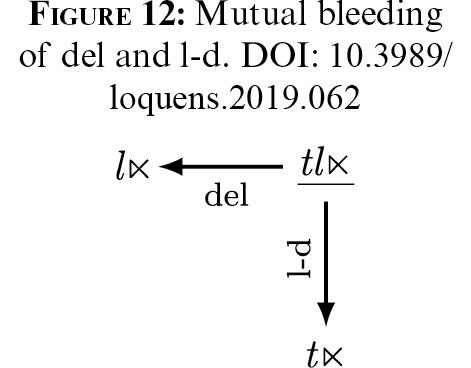

Figura 12:   Mutual bleeding of del and l-d.

It is crucial that there is no deletion arrow originating in l⋉, and no l-drop arrow originating in t⋉: the absence of an arrow in this figure is as significant as its presence. The topology of Figure 12 is thus ← . →, without a third arrow.

Generalizing somewhat to our schematic rules and interactions, imagine that P is further specified such that it more specifically changes cade to cbde, and call this new rule crop(P).[7] (R is repeated for ease of reference below.)

•	(10) a. crop cf. (7a)
•	b. = (7c)

This constitutes a ‘cropping’ of P in that the extension of crop(P) is a narrower, proper subset of P‘s extension. Most critically, crop(P) doesn’t apply to the output cadf of R, which the original P does apply to. The effect of narrowing P ‘s extension in this way is to excise the rightmost arrow of the (counter)bleeding topology ← . → . →, converting it to mutual bleeding. ← . → The generalized figure for mutual bleeding is thus Figure 13: just like P bleeds R in Figure 5, except that the output-removal arrow of P has been excised.

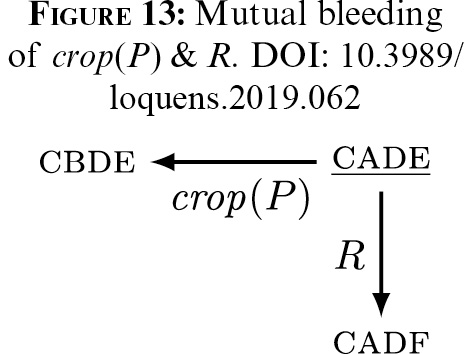

Figura 13:   Mutual bleeding of crop(P) & R.

The cropping operation is intended to encompass both excision and addition of an arrow, thus mimicking the inherent symmetry of the swapping and flipping operations.[8] Thus classical bleeding can be converted via cropping to mutual bleeding by excision of the rightmost, o-removal arrow of the topology, and mutual bleeding can likewise be converted via cropping to classical bleeding by addition of this o-removal arrow.

To see how cropping works with more substantive examples, let’s first see what it takes to convert the example based on Lamba from bleeding to mutual bleeding. Excising the o-removal arrow of the lowering rule from Figure 3 results in Figure 14.

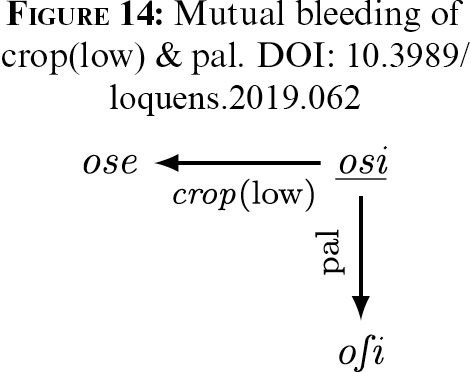

Figura 14:   Mutual bleeding of crop(low) & pal.

In order to achieve this result, the context of lowering must be changed such that the last of the zero or more consonants intervening between the trigger mid vowel and the target i is not ʃ.[9] (Recall now the relevance of the discussion in fn. 6 about whether the s~ʃ alternation in Lamba is allophonic or the neutralization of an underlying contrast.) This condition excludes rather than includes a natural class, and so must be stated negatively:

(11) Mutual bleeding of crop(low) & pal

1.	Cropped lowering (‘crop(low)’): last(C0) ≠ ʃ
2.	Palatalization (‘pal’): s → ʃ / __ i

Cropped lowering and palatalization mutually bleed each other: if cropped lowering applies first to osi, yielding ose, then palatalization is no longer applicable, and if palatalization applies first, yielding oʃi, then cropped lowering is no longer applicable.

Now let’s see how to convert the example based on Russian from mutual bleeding to bleeding. Adding an o-removal arrow to the deletion rule in Figure 12 results in Figure 15.

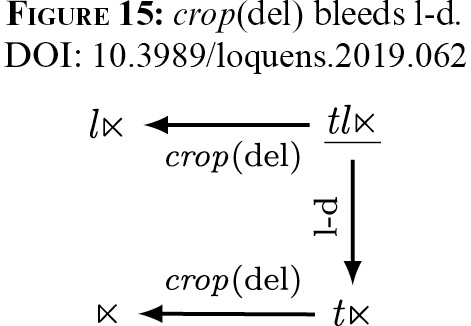

Figura 15:   crop(del) bleeds l-d.

The minimal change necessary to achieve this result is for the context of deletion to become a disjunctive one, such that coronal stops delete before l or at the end of the word:

(12)Cropped deletion bleeds l-drop

1.	Cropped deletion (‘crop(del)’):
2.

Cropped deletion bleeds l-drop, but not vice-versa: if cropped deletion applies first to tl⋉, yielding l⋉, then l-drop is no longer applicable, but if l-drop applies first, yielding t⋉, then cropped deletion is still applicable, yielding the maximally deleted ⋉.

The contextual disjunction technically means that l-drop ‘transfuses’ cropped deletion, in the sense defined in an unpublished paper by Don Churma entitled ‘Rule interactions’ and cited by Zwicky (1987, p. 93)[10] “[I]f one rule transfuses another, the string to which the second rule applies is different from what it would be if the first rule didn’t apply — either because the first rule removes some material to which the second could apply but also supplies new places for the second rule to apply in, or because the first rule changes one string to which the second is applicable into a different string to which the second is applicable[.]” We discuss transfusion and similar complex interactions in Baković & Blumenfeld, in prep.

5.2. Self-destructive feeding (‘seeding’)TOP

Consider now the case of self-destructive feeding (Baković, 2007) shown in (13), based on a Turkish example. The feeding is ‘self-destructive’ because applying deletion to the output of epenthesis results in a form that is itself not a possible output of epenthesis. Following Baković & Blumenfeld (2018b), we henceforth refer to this interaction type as seeding.

(13) Epenthesis seeds deletion

1.	Epenthesis (‘epn’):Ø → i / C__C#ipnipin ‘your rope’
2.	Deletion (‘del’): k → Ø/ V__ Vbebekibebei ‘baby (acc)’
3.	Interaction: ‘your baby’bebeknbebekin bebein

Epenthesis i-provides deletion: deletion is inapplicable to the input to epenthesis, bebekn, but is applicable to its output, bebekin. Unlike classical feeding, however, epenthesis does not also o-provide deletion: there is no application of epenthesis that leads directly to the output bebein. The illustrative figure for this case of seeding is thus Figure 16, with epenthesis i-providing but not o-providing deletion. Furthermore, since the application of deletion results in a form that is not in the set of possible outputs of epenthesis, deletion in turn o-removes epenthesis. (Seeding shares this feature in common with counterbleeding; see §6.)

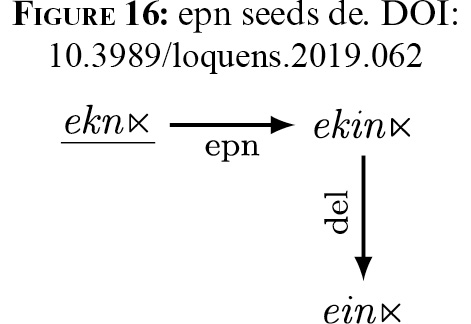

Figura 16:   epn seeds del.

The topology of seeding, → . →, is distinct from other topologies we’ve seen thus far. But much like mutual bleeding, there are only two arrows; the absence of a deletion arrow originating at ekn⋉ and of an epenthesis arrow ending at ein⋉ in Figure 16 is crucial.

Generalizing somewhat again to our schematic rules and interactions, recall crop(P) in (10a), a → b / c __ de, compared to the original P in (7a), a → b / c __ d. In this case, what’s relevant about the difference between P and crop(P) is that crop(P ) doesn’t apply to an input that would result in the output cbdf of Q. The effect of narrowing P ‘s extension in this way is to excise the rightmost arrow of the (counter)feeding topology, → . → . ← converting it into seeding → . → . The generalized figure for seeding is thus Figure 17: just like P feeds Q in Figure 4, except that the o-provision arrow of P has been excised.

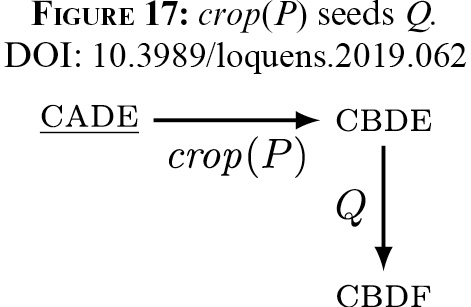

Figura 17:   crop(P) seeds Q.

Again, the cropping operation is intended to be symmetrical, encompassing both excision and addition of an arrow. Thus classical feeding can be converted by cropping to seeding by excision of the rightmost, o-provision arrow of the topology, and seeding can likewise be converted by cropping to classical feeding by addition of this o-provision arrow.

To see how cropping in the feeding context works with more substantive examples, let’s first see what it takes to convert the example based on Finnish from feeding to seeding. Excising the o-provision arrow of the raising rule from Figure 2 results in Figure 18.

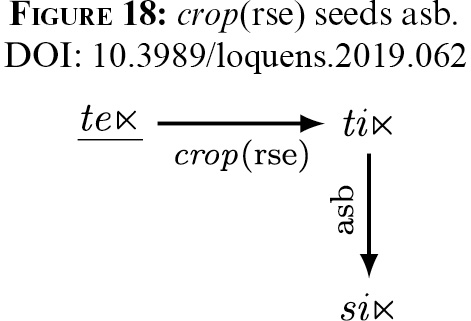

Figura 18:   crop(rse) seeds asb.

In order to achieve this result, the context of raising must be changed such that there not be an s to the left of the raising target e. Because this condition excludes rather than includes a natural class, it must be stated negatively:

(14) Cropped raising seeds assibilation

1.	Cropped raising (‘crop(rse)’):
2.	Assibilation (‘asb’): t → s /__i

Cropped raising seeds rather than feeds assibilation, because assibilation destroys the conditions that were necessary for the application of cropped raising in the first place.

Now let’s see how to convert the example based on Turkish from seeding to feeding. Adding an o-provision arrow to the epenthesis rule in Figure 16 results in Figure 19.

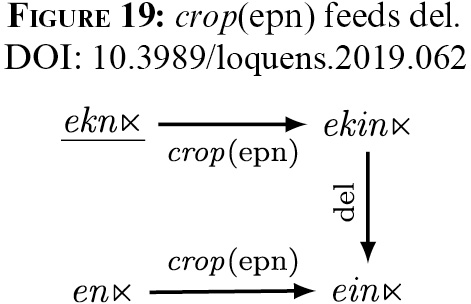

Figura 19:   crop(epn) feeds del.

This result can be achieved by changing the context of epenthesis such that i is inserted before any word-final consonant, without regard for what may appear to its left:

(15) Cropped epenthesis feeds deletion

1.	Cropped epenthesis (‘crop(ep)’):Ø → i / __ C#
2.	Deletion (‘del’): k → Ø / V__ V

Cropped epenthesis feeds deletion, but deletion does not in turn destroy the context that enabled the application of cropped epenthesis: the form resulting from the feeding interaction is itself a possible direct output of cropped epenthesis.

5.3. More swappingTOP

Just as with classical feeding and bleeding, the rules involved in mutual bleeding and seeding interactions can be swapped — in other words, Figure 13 and Figure 17 can be rotated (clockwise) 90 degrees. The results of these rotations are shown in Figure 20 and Figure 21.

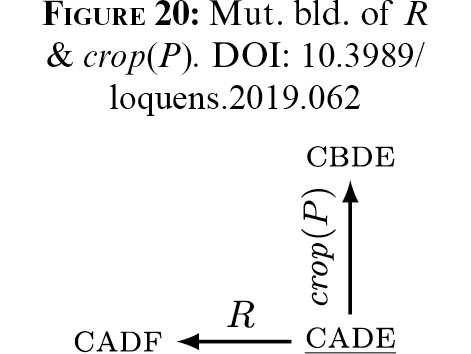

Figura 20:   Mut. bld. of R & crop(P).

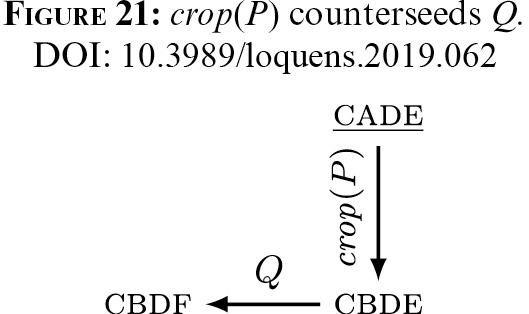

Figura 21:   crop(P) counterseeds Q.

In the case of Figure 20, the result is simply that R is now the bleeding rule and P is now the bled rule. In the case of Figure 21, on the other hand, the result is a counterseeding interaction. Such an interaction is shown in (16), based on an example in Lomongo. If deletion were to apply first, deletion would seed gliding: obina oina *wina.

(16) Deletion counterseeds gliding:

1.	Gliding (‘gld’): oisawisa ‘you hide’
2.	Deletion (‘del’): babinabaina ‘they dance’
3.	Interaction:obinaobinaoina ‘you dance’

Deletion i-provides but does not also o-provide gliding: there is no input to which deletion can apply that leads directly to the output wina that would result from deletion seeding gliding. The illustrative figure for this case of counterseeding is thus Figure 22, with deletion i-providing but not o--providing gliding, and with gliding consequently o-removing deletion.

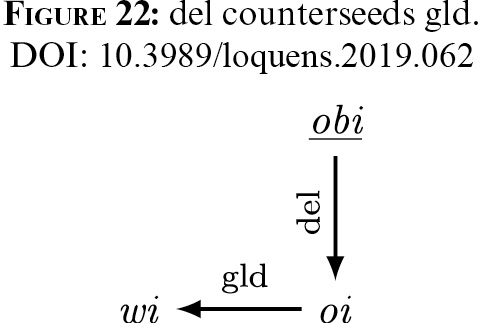

Figura 22:   del counterseeds gld.

The interaction in Lomongo has been described simply as counterfeeding in e.g. Baković (2011, 2013a), but proper attention to the classically-ignored output relations reveals that it is formally distinct from counterfeeding. In order for this interaction to be converted to counterfeeding, an o-provision crop(del)-arrow would need to be added from input wbi to output wi in Figure 22 above, thus generalizing deletion such that it applies when the preceding segment is a vowel or a glide (=[-Cons] ) , not just a vowel (= V /[+syll]).

Finally, note once again that our illustrative figures highlight the difference between order-dependent and order-independent properties. Swapping (as figure rotation) converts between seeding and counterseeding as order-dependent categories; cropping (as arrow excision/addition) converts between (counter)feeding and (counter)seeding as order-independent categories.

5.4. More flippingTOP

In the same way that flipping P converts be-tween (counter)feeding and (counter)bleeding, flipping crop(P) converts between mutual bleeding and (counter)seeding. Figure 13, Figure 17, Figure 20 and Figure 21 thus become Figure 23, Figure 24, Figure 25 and Figure 26, pairwise respectively.

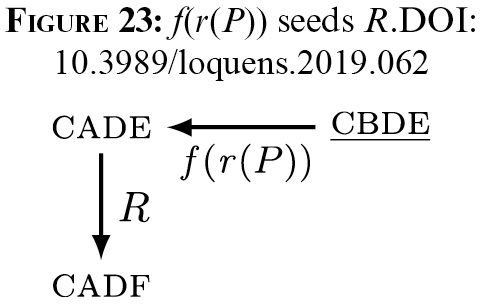

Figura 23:   f(r(P)) seeds R.

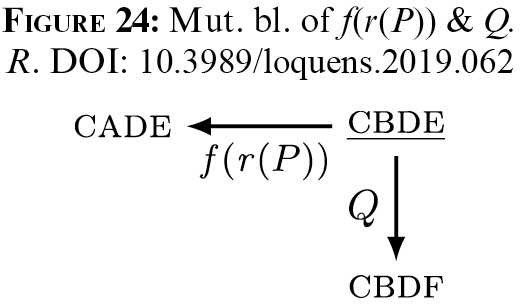

Figura 24:   Mut. bl. of f(r(P)) & Q.

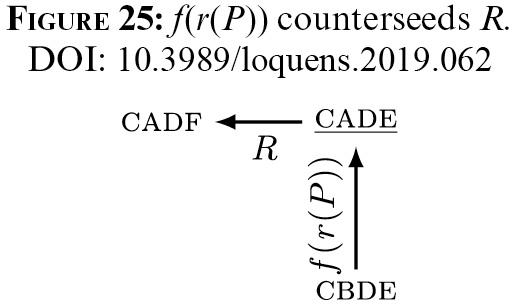

Figura 25:   f(r(P)) counterseeds R.

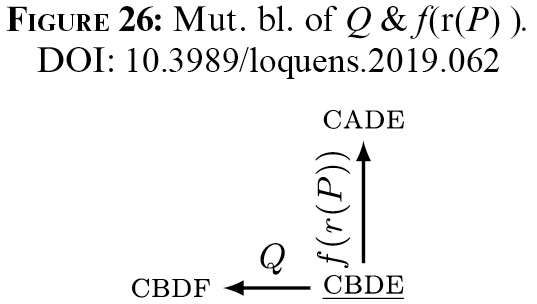

Figura 26:   Mut. bl. of Q & f(r(P) ).

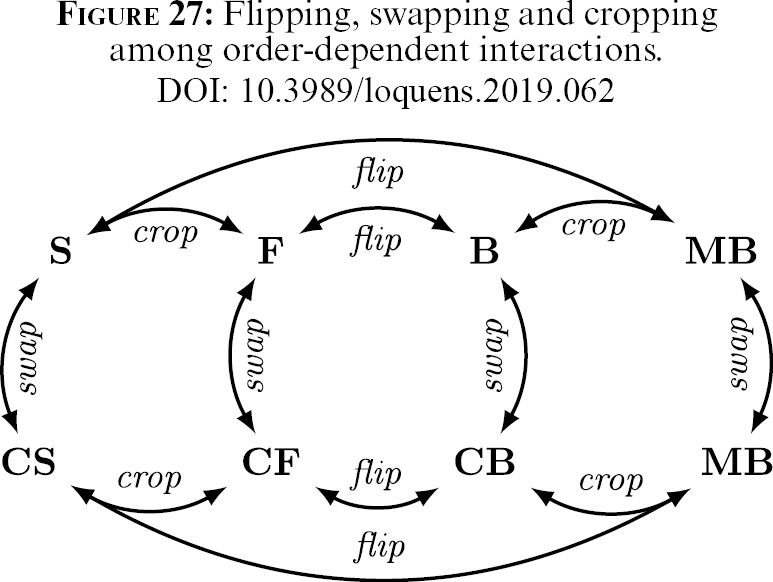

Figura 27:   Flipping, swapping and cropping among order-dependent interactions.

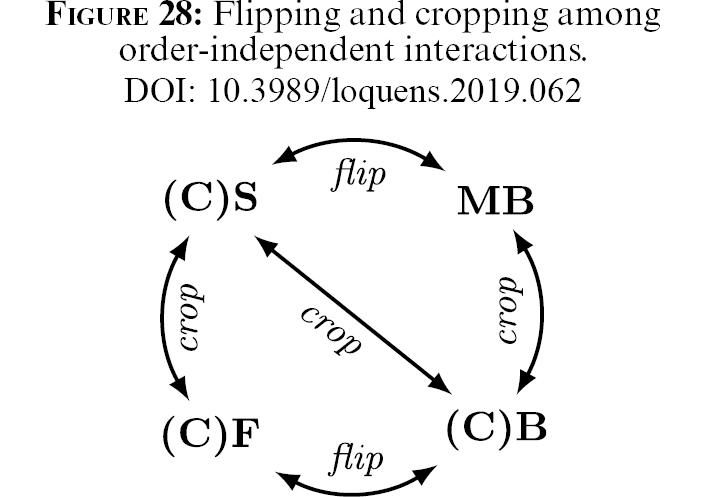

Figura 28:   Flipping and cropping among order-independent interactions.

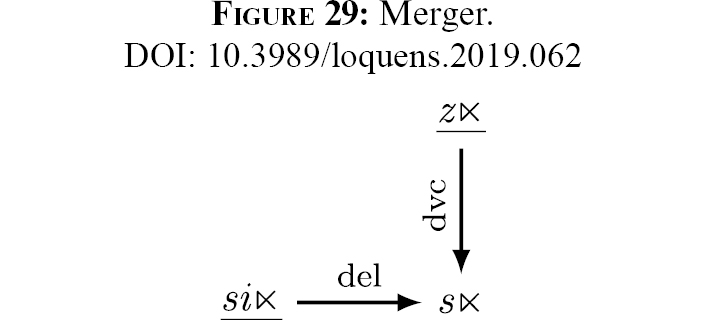

Figura 29:   Merger.

The orientations of these figures differ from those of their unflipped originals, but the results are the same three interaction types: seeding, mutual bleeding, and counterseeding.

6. INTERIM SUMMARYTOP

By way of summary we offer the following diagram, building on the initial diagram offered in Figure 1. The classical interactions are in the center circle, related to each other via flip and swap; crop relates these classical interactions to mutual bleeding and (counter)seeding, which are also related to each other via flip and swap.

Note that (counter)bleeding and (counter)seeding, when considered in order-independent topological form (17), are directly relat-able to each other via crop by excising the left-most out-flow arrow of (counter)bleeding or by adding such an arrow to (counter)seeding.[11]

•	(17) a. (Counter)bleeding: ←. → . →
•	b. (Counter)seeding: → . →

Focusing on just order-independent properties of interactions, then, conversions via flip and crop alone can be summarized as follows.

7. MERGERTOP

The final topological arrow configuration is → . ←. This represents merger. Consider the following hypothetical pair of rules:

•	(18) a. Devoicing:[- son] ® [- voi]/ __ #
•	b. Deletion: i → Ø / [ - voi] __

Neither feeds or bleeds the other, classically, mutually, self-destructively, or otherwise. But in our terms, the rules mutually output-provide each other: an output ending in s⋉ could result from the application of either rule, from input z⋉ by devoicing or from input si⋉ by deletion.

Our expectation is that this configuration should be relatable to other types of interaction via the flip and crop operations, and indeed it is.

Flipping either of the arrows results in one of two seeding configurations. If deletion is flipped to epenthesis, then devoicing counterseeds epenthesis (Figure 30): epenthesis causes the insertion of a vowel, which makes the consonant non-final, thus destroying devoicing’s potential triggering environment. Conversely, if devoicing is flipped to voicing, then deletion seeds voicing (Figure 31): deletion causes voicing, but voicing makes the consonant voiced, thus destroying deletion’s triggering environment.

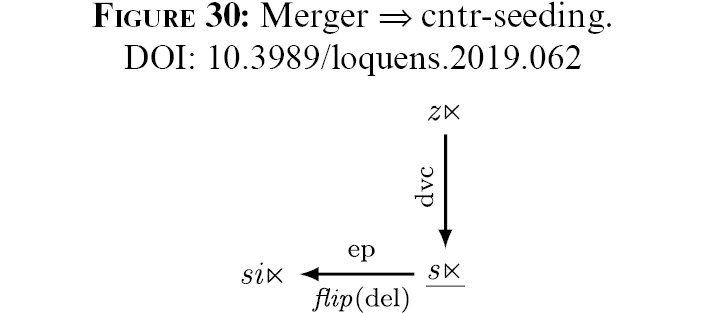

Figura 30:   Merger ⇒ cntr-seeding.

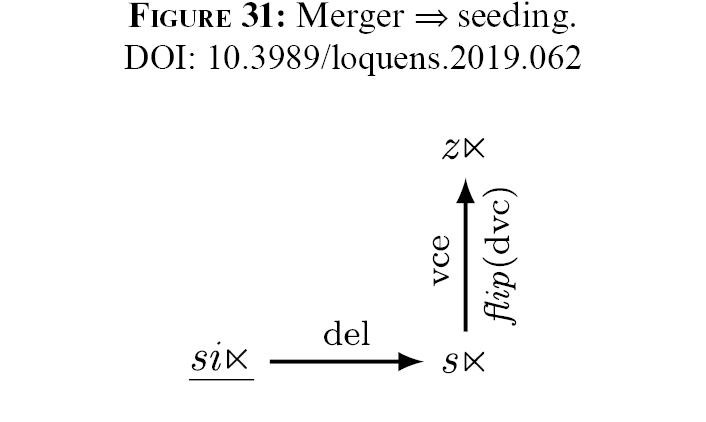

Figura 31:   Merger ⇒ seeding.

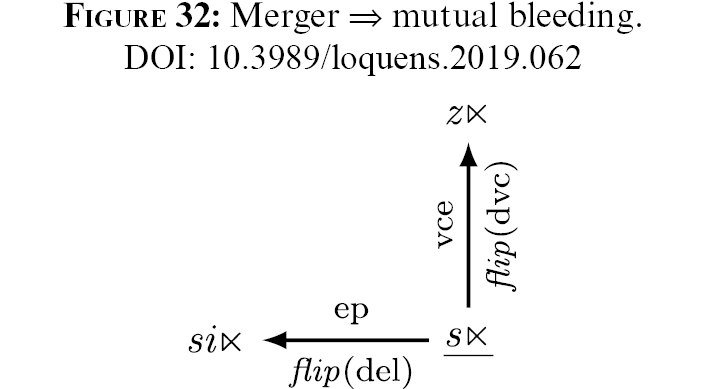

Figura 32:   Merger ⇒ mutual bleeding.

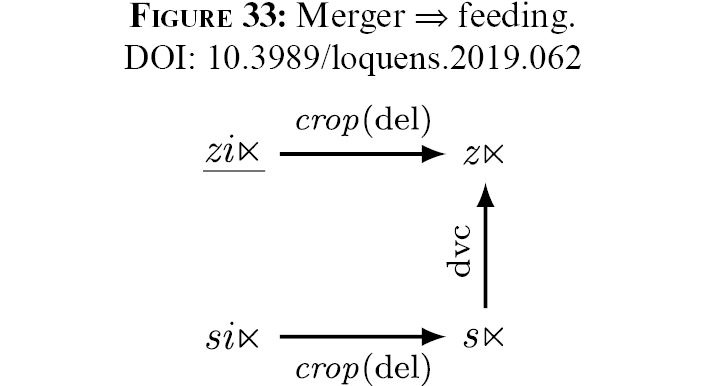

Figura 33:   Merger ⇒ feeding.

Flipping both arrows results in mutual bleeding. Devoicing becomes final voicing, and deletion becomes i-epenthesis after final voiceless segments. Both of these flipped rules are applicable to as⋉, but not to each other’s outputs.

Merger is also relatable to (counter)feeding by the crop operation: an arrow can be added to the → . ← topology of merger to turn it into the → . → . ← topology of (counter)feeding. This can be straightforwardly accomplished by extending deletion to apply after all consonants, not just voiceless ones (crop(del) = i → Ø / C __ #); the resulting added arrow creates the feeding configuration, and cropped deletion feeds devoicing: zi⋉ z⋉ s⋉.

Finally, consider the relation between merger and (counter)bleeding. Merger’s topology, → . ←, includes two arrows pointing at the same node, while the (counter)bleeding topology, ← . →. →, lacks a node with two arrows pointing at it. Thus, to convert merger to (counter)bleeding or vice-versa, both flip and crop are required. Merger can be converted via flipping to seeding (or to mutual bleeding, applying flip twice), and the resulting interaction can in turn be converted to (counter)bleeding via cropping. Or, merger can first be cropped into (counter)feeding, which can then be flipped into (counter)bleeding. All of the relationships among these order-independent relations are summarized in Figure 34.

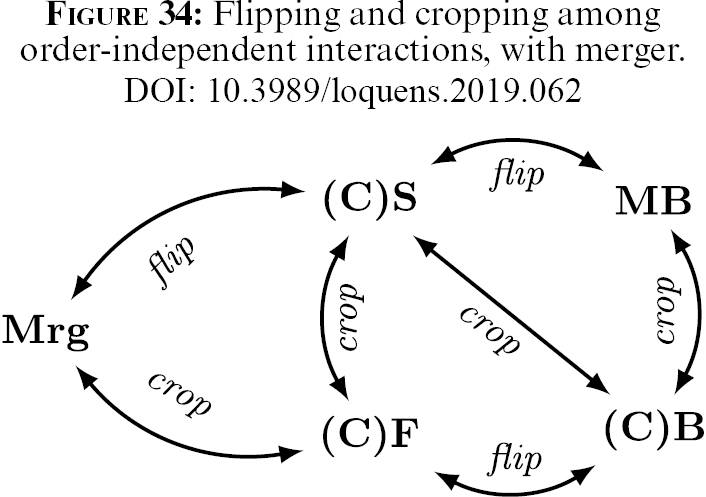

Figura 34:   Flipping and cropping among order-independent interactions, with merger.

8. TYPOLOGY AND TOPOLOGYTOP

As we’ve already seen along the way, the entire typology of map interactions can be visualized as the topology of arrow configurations. With two arrows, there are three possibilities: merger, → . ← mutual bleeding ← . →, and seeding → . → (equivalently, ← .← ). With three arrows, there are only two possibilities, (counter)feeding →. →. ← (equivalently, → . ←. ←) and (counter)bleeding ← . → . → (equivalently, ← . ← .→ ). To see that these are the only interactional possibilities, consider the ‘full square’ illustrated in Figure 35.

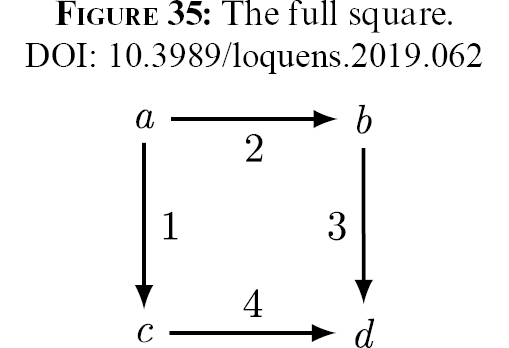

Figura 35:   The full square.

Each of the four three-arrow configurations — the two topological possibilities, under each of two rule orders — can be obtained by excising one of the arrows from the square. Excising one of the arrows originating at a results in (counter)feeding: feeding if arrow 1 is excised (Figure 36) and counterfeeding if arrow 2 is excised (Figure 38). Excising one of the arrows pointing to d results in (counter)bleeding: bleeding if arrow 3 is excised (Figure 37), and counterbleeding if arrow 4 is excised (Figure 39).

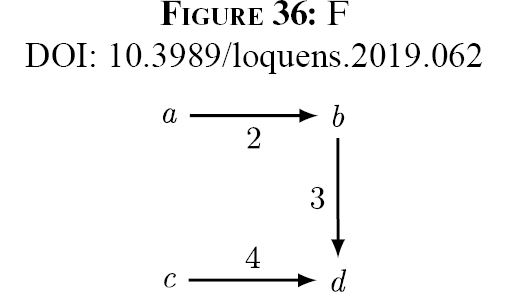

Figura 36:   F

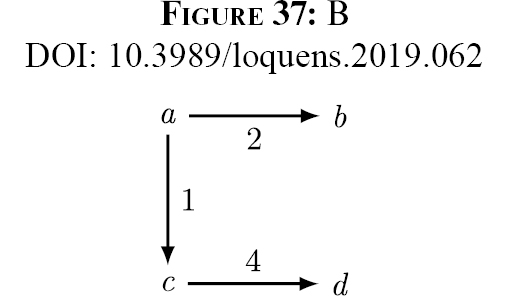

Figura 37:   B

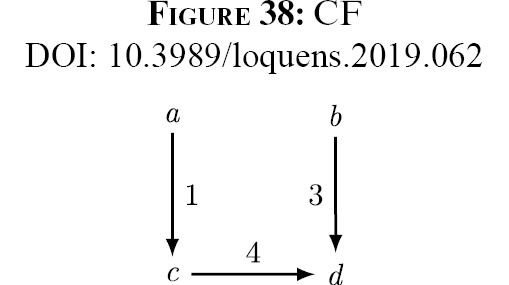

Figura 38:   CF

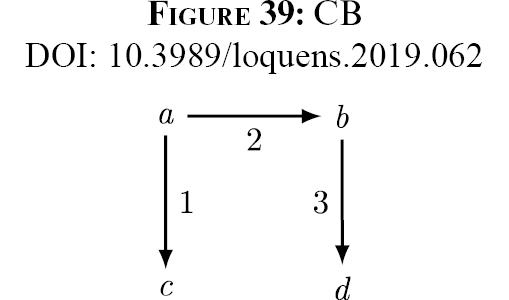

Figura 39:   CB

The two-arrow configurations can in turn be obtained in various ways from each of these three-arrow configurations. Excising arrow 2 from feeding (Figure 36) or arrow 1 from counterfeeding (Figure 37) results in merger (Figure 40). Excising arrow 4 from feeding (Figure 36) or arrow 1 from counterbleeding (Figure 39) results in seeding (Figure 41). Excising arrow 3 from counterfeeding (Figure 37) or arrow 2 from bleeding (Figure 38) results in counterseeding (Figure 42). Finally, excising arrow 4 from bleeding (Figure 38) or arrow 3 from counterbleeding (Figure 39) results in mutual bleeding (Figure 43).

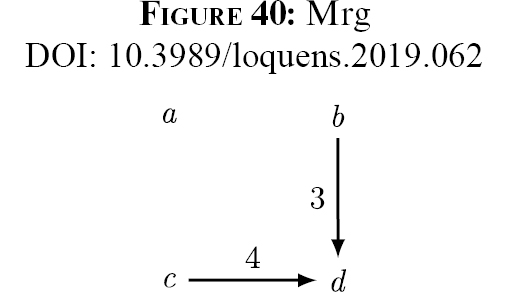

Figura 40:   Mrg

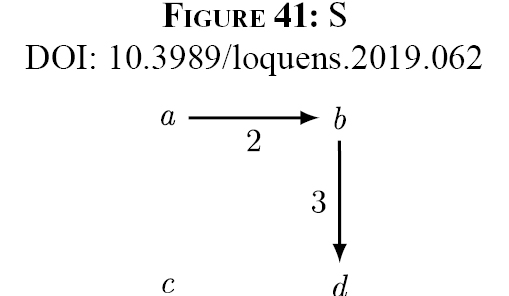

Figura 41:   S

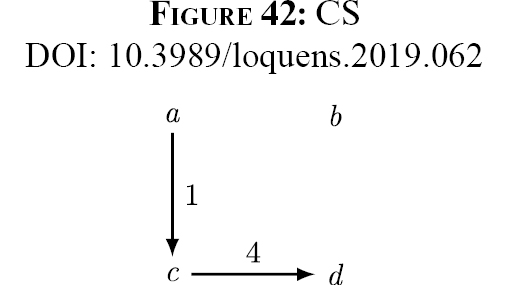

Figura 42:   CS

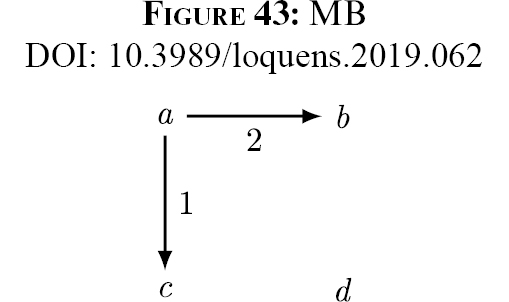

Figura 43:   MB

9. CONCLUDING REMARKSTOP

We have explored here the typological and topological space of pairwise rule interactions, based on a formal characterization of those interactions in terms of more basic relations: input-provision, output-provision, input-removal, and output-removal. These relations can be represented as arrows toward or away from (sets of) inputs and outputs of the rules, which can be flipped, excised, or added — the latter two forming complementary suboperations of a broader cropping operation. Representing conjunctive rule ordering two-dimensionally, with the earlier-ordered rule represented horizontally and the later-ordered rule represented vertically, allows rule re-ordering to be obtained via 90-degree rotation. The formal consequences and further development of the structure of this space are topics of ongoing research.
